Cartridge Heater
High Temperature Dissipative Paste
Gray thermal conductivity silicone grease, this kind of silicone adds thermal conductive graphite powder, metal powder and other material to get better thermal conductivity effect. The contact area between them and achieve excellent heat dissipation effect.
COMIND Industries® cartridge heaters are used in applications that are difficult to access, this being their main benefit.
They can be used in molds that need to fit into a cavity and achieve high temperatures thanks to the various diameters in which they are manufactured.
Mainly used in the plastics industry, where bag sealing is required, hydraulic oil applications, motor oil, gearboxes, laboratories and food equipment.
Features
-Stainless steel
-Economic
-Excellent heat transfer -Easy maintenance
-Resistance to oxidation and corrosion.
Terminal Models
Type-A

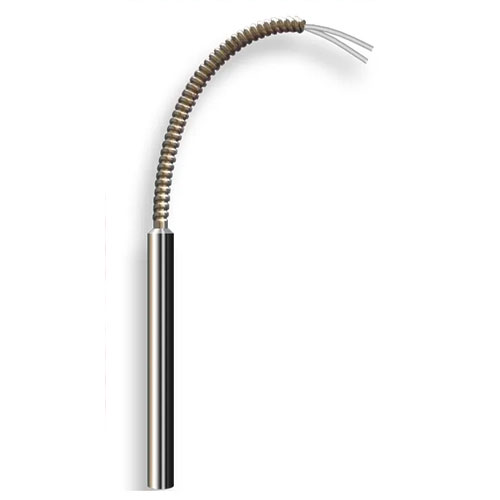

Type-B
Type-C

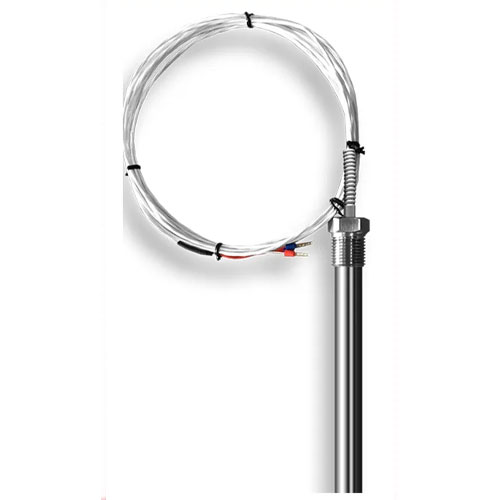

Type-d

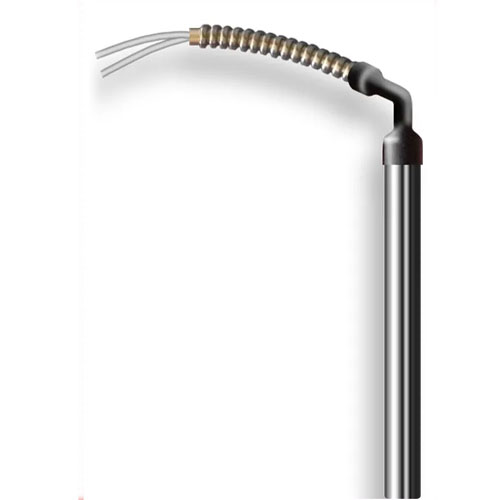

Type-e
Measures Heater Cartridges Manufactured in Line
We present the measurements that we have in immediate delivery If our measurements in stock do not match what you are looking for
| Diameter | Inches | Volt. | Watt | Long Cable | Code |
|---|---|---|---|---|---|
| Ø 1/4 " | 1 1/4 " | 230v | 80w | 300 mm | PLI01410001 |
| Ø 1/4 " | 1 1/2 " | 230v | 100w | 300 mm | PLI01410002 |
| Ø 1/4 " | two" | 230v | 200w | 300mm | PLI01410003 |
| Diameter | Inches | Volt. | Watt | Long Cable | Code |
|---|---|---|---|---|---|
| Ø 5/16 '' | 2" | 230v | 200w | 300 mm | PLI01410004 |
| Ø 5/16 '' | 2 1/2 " | 230v | 250w | 300 mm | PLI01410005 |
| Ø 5/16 '' | 3" | 230v | 300w | 300mm | PLI01410006 |
| Ø 5/16 '' | 3 1/2 " | 230v | 350w | 300mm | PLI01410007 |
| Ø 5/16 '' | 4" | 230v | 400w | 300mm | PLI01410008 |
| Ø 5/16 '' | 5" | 230v | 500w | 300mm | PLI01410009 |
| Ø 5/16 '' | 6 " | 230v | 600w | 300mm | PLI01410010 |
| Diameter | Inches | Volt. | Watt | Long Cable | Code |
|---|---|---|---|---|---|
| Ø 3/8 '' | 2" | 230v | 250w | 300 mm | PLI01410011 |
| Ø 3/8 '' | 2 1/2 " | 230v | 300w | 300 mm | PLI01410012 |
| Ø 3/8 '' | 3" | 230v | 350w | 300mm | PLI01410013 |
| Ø 3/8 '' | 3 1/2 " | 230v | 400w | 300mm | PLI01410014 |
| Ø 3/8 '' | 4" | 230v | 500w | 300mm | PLI01410015 |
| Ø 3/8 '' | 5" | 230v | 500w | 300mm | PLI01410016 |
| Ø 3/8 '' | 6 " | 230v | 700w | 300mm | PLI01410017 |
| Diameter | Inches | Volt. | Watt | Long Cable | Code |
|---|---|---|---|---|---|
| Ø 1/2 " | 2" | 230v | 250w | 300 mm | PLI01410018 |
| Ø 1/2 " | 2 1/2 " | 230v | 300w | 300 mm | PLI01410019 |
| Ø 1/2 " | 3" | 230v | 350w | 300mm | PLI01410020 |
| Ø 1/2 " | 3 1/2 " | 230v | 400w | 300mm | PLI01410021 |
| Ø 1/2 " | 4" | 230v | 600w | 300mm | PLI01410022 |
| Ø 1/2 " | 5" | 230v | 700w | 300mm | PLI01410023 |
| Ø 1/2 " | 6 " | 230v | 800w | 300mm | PLI01410024 |
| Ø 1/2 " | 7 " | 230v | 900w | 300mm | PLI01410025 |
| Ø 1/2 " | 7 1/2 " | 230v | 1000w | 300mm | PLI01410026 |
| Ø 1/2 " | 8 " | 230v | 1000w | 300mm | PLI01410027 |
| Diameter | Inches | Volt. | Watt | Long Cable | Code |
|---|---|---|---|---|---|
| Ø 5/8 '' | 2" | 230v | 300w | 300 mm | PLI01410028 |
| Ø 5/8 '' | 2 1/2 " | 230v | 350w | 300 mm | PLI01410029 |
| Ø 5/8 '' | 3" | 230v | 400w | 300mm | PLI01410030 |
| Ø 5/8 '' | 3 1/2 " | 230v | 450w | 300mm | PLI01410031 |
| Ø 5/8 '' | 4" | 230v | 600w | 300mm | PLI01410032 |
| Ø 5/8 '' | 5" | 230v | 700w | 300mm | PLI01410033 |
| Ø 5/8 '' | 6 " | 230v | 800w | 300mm | PLI01410034 |
| Ø 5/8 '' | 7 " | 230v | 850w | 300mm | PLI01410035 |
| Ø 5/8 '' | 8 " | 230v | 1200w | 300mm | PLI01410036 |
| Diameter | Inches | Volt. | Watt | Long Cable | Code |
|---|---|---|---|---|---|
| Ø 10 mm | 100mm | 230v | 600w | 300 mm | PLI01420001 |
| Ø 10 mm | 120mm | 230v | 350w | 300 mm | PLI01420002 |
| Ø 10 mm | 130mm | 230v | 700w | 300mm | PLI01420003 |
| Diameter | Inches | Volt. | Watt | Long Cable | Code |
|---|---|---|---|---|---|
| Ø 12.5mm | 60mm | 230v | 300w | 300 mm | PLI01422001 |
| Ø 12.5mm | 70mm | 230v | 350w | 300 mm | PLI01422002 |
| Ø 12.5mm | 80mm | 230v | 400w | 300mm | PLI01422003 |
| Ø 12.5mm | 100mm | 230v | 500w | 300mm | PLI01422004 |
| Ø 12.5mm | 120mm | 230v | 600w | 300mm | PLI01422005 |
| Ø 12.5mm | 150mm | 230v | 650w | 300mm | PLI01422006 |

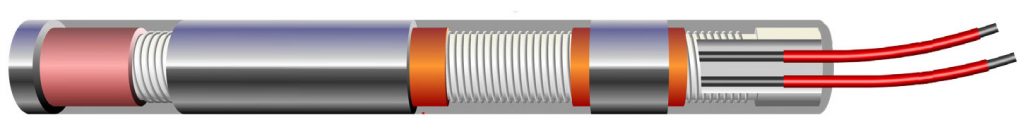

Construction
Resistive wire
Electrical insulator
Steel according to customer's requirement
Tig welded base watertight up to a pressure of 60kg / cm2
Hard ceramic head
Conducting wire
Refractory paste
